Tin-Plate-04
Tin Plate
Product Introduction
Features
  • Beautiful Appearance.
  • Excellent Paintability & Printability.
  • Excellent Formability & Strength.
  • Excellent Corrosion Resistance.
  • Excellent Solderability & Weldability.

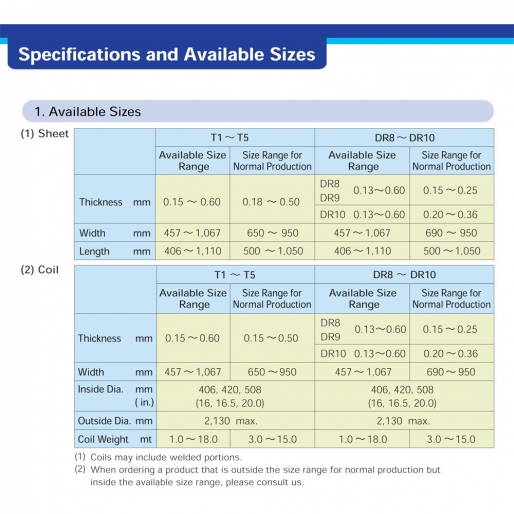

Specifications and Available Sizes
1. Available Sizes
(1) Sheet
T1~T5 DR8~DR10
Available Size Range Size Range for Normal Production Available Size Range Size Range for Normal Production
Thickness mm 0.15~0.60 0.18~0.50 DR8
DR9
0.13~0.60 0.15~0.25
DR10  0.13~0.60 0.20~0.36
Width mm 457~1,067 650~950 457~1,067 690~950
Length mm 406~1,110 500~1,050 406~1,110 500~1,050
(2) Coil
T1~T5 DR8~DR10
Available Size Range Size Range for Normal Production Available Size Range Size Range for Normal Production
Thickness mm 0.15~0.60 0.15~0.50 DR8
DR9
0.13~0.60 0.15~0.25
DR10  0.13~0.60 0.20~0.36
Width mm 457~1,067 650~950 457~1,067 690~950
Inside Dia. mm
( in.)
406, 420, 508
(16, 16.5, 20.0)
406, 420, 508
(16, 16.5, 20.0)
Outside Dia. mm 2,130 max. 2,130 max.
Coil Weight mt 1.0~18.0 3.0~15.0 1.0~18.0 3.0~15.0

(1)Coils may include welded portions.
(2)When ordering a product that is outside the size range for normal production but inside the available size range, please consult us.

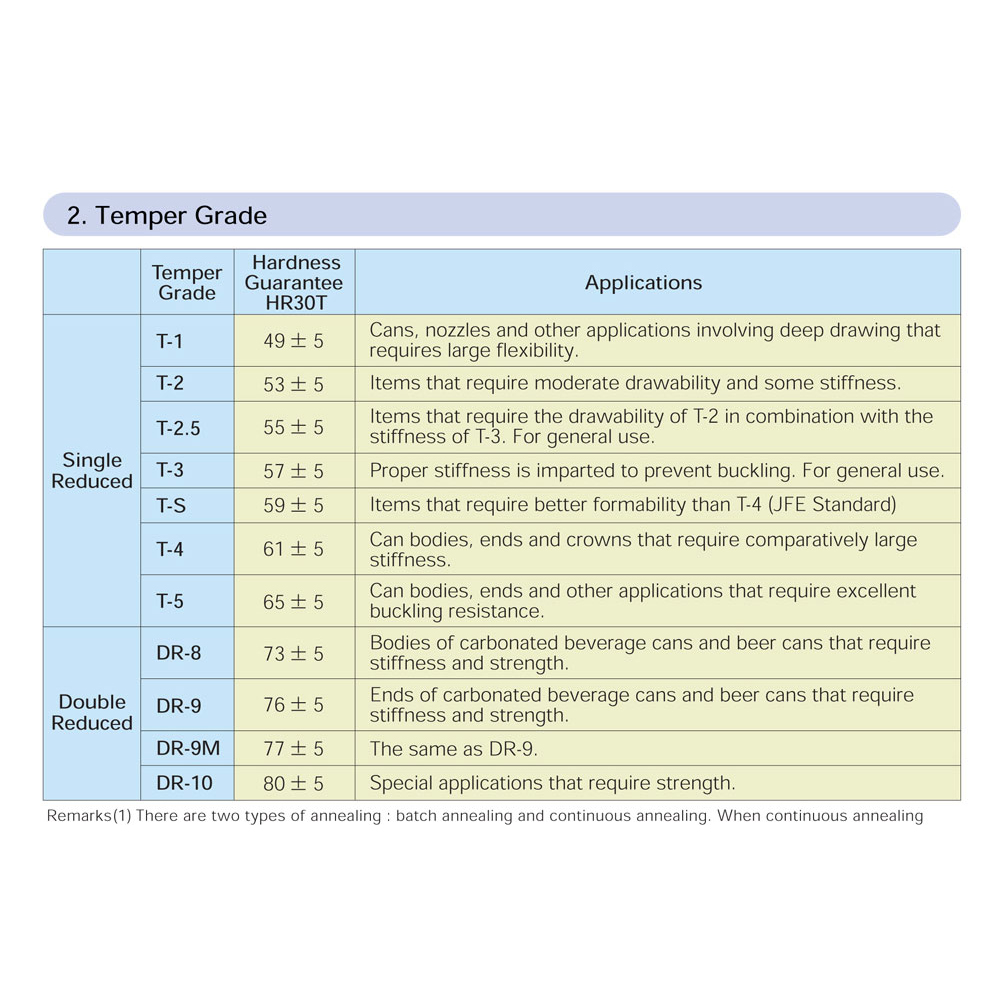

2. Temper Grade
  Temper Grade Hardness Guarantee HR30T Applications
Single Reduced T-1 49±5 Cans, nozzles and other applications involving deep drawing that requires large flexibility.
T-2 53±5 Items that require moderate drawability and some stiffness.
T-2.5 55±5 Items that require the drawability of T-2 in combination with the stiffness of T-3. For general use.
T-3 57±5 Proper stiffness is imparted to prevent buckling. For general use.
T-S 59±5 Items that require better formability than T-4 (JFE Standard)
T-4 61±5 Can bodies, ends and crowns that require comparatively large stiffness.
T-5 65±5 Can bodies, ends and other applications that require excellent buckling resistance.
Double Reduced DR-8 73±5 Bodies of carbonated beverage cans and beer cans that require stiffness and strength.
DR-9 76±5 Ends of carbonated beverage cans and beer cans that require stiffness and strength.
DR-9M 77±5 The same as DR-9.
DR-10 80±5 Special applications that require strength.
Specification
Capacity: about 5,8000 tons per month for tin-plate products.
Standard: Passiviation 300 & 311, EN10202, EN10203, JIS G3303, ASTM A624, ASTM626.
Raw material: CR, SPCC, MR.
Thickness: from 0.15mm to 0.40mm, all available.
Width: from 200mm to 1050mm, all available.
Hardnss:T3.
Tin coating weight: 1.1g/m2-8.4g/m2.
Surface: bright finish, stone, super stone, matte, silver.
